Glan Taylor Polarizer

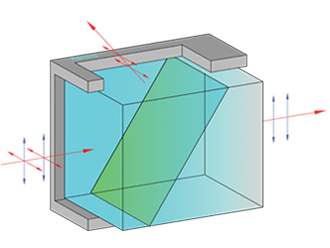

Glan Taylor polarizer is made of two same birefringent material prisms that are assembled with an air space.Its length to aperture ratio which is less than 1.0 makes it a relatively thin polarizer.The polarizer with no side escape windows is suitable for low to medium power application where the side rejected beams are not required .The angular field of different materials of polarizers is listed below for comparison.


  • Calcite GTP: Wavelength Range 350-2000nm
  • a-BBO GTP: Wavelength Range 190-3500nm
  • YVO4 GTP: Wavelength Range 500-4000nm
  • Surface Quality: 20/10 Scratch/Dig
  • Beam Deviation: < 3 arc minutes
  • Wavefront Distortion: <λ/4@633nm
  • :
  • Damage Threshold: >200MW/cm2@1064nm, 20ns, 20Hz
  • Coating: P Coating Or AR Coating
  • Mount: Black Anodized Aluminium
  • Product Detail

    Glan Taylor polarizer is made of two same birefringent material prisms that are assembled with an air space.Its length to aperture ratio which is less than 1.0 makes it a relatively thin polarizer.The polarizer with no side escape windows is suitable for low to medium power application where the side rejected beams are not required .The angular field of different materials of polarizers is listed below for comparison.

    Feature:
    Air-spaced
    Close to Brewster’s Angle Cutting
    High Polarization Purity
    Short Length
    Wide Wavelength Range
    Suitable for medium power application
